Mitutoyo / Bore Gauge Set

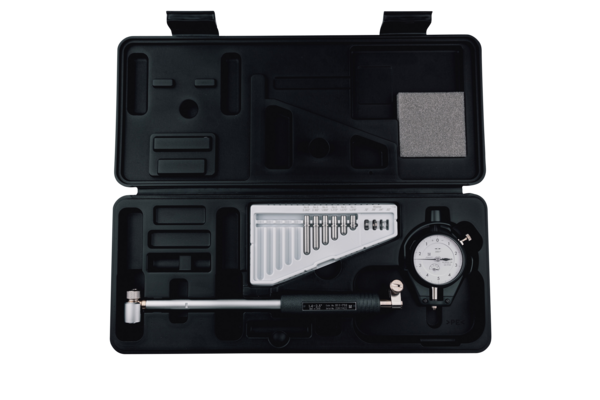

Bore Gauge Set - Mitutoyo 2-Point Inside Measuring Instrument, 511-752-20

PU621503 Basket

SKU: 23470-511-752-20
$719.04 CAD

Bore Gauge Set - Mitutoyo 2-Point Inside Measuring Instrument, 511-752-20 is currently out of stock and will ship as soon as inventory has been replenished.

🚚 Order within the next 2 hours, 15 minutes for delivery by 17 Nov, 2024.

Earn [points_amount] when you buy this item. Learn more

Item #: 511-752-20

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

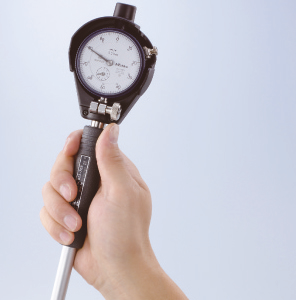

  • It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
  • Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
Inch-Metric:
Inch
Range:
1.4 - 2.5 "
Graduation:
0.0001"
Stroke of contact point:
18 - 60 mm: 1.2 mm
50 - 400 mm: 1.6 mm
Measuring depth:
6"
No. Dial Indicator:
2923AB-10
Number of anvils:
6
Accuracy:
2 µm
Repeatability:
0,5 µm
Delivered:
Including box, dial indicator, plastic cover for indicator
Digital/Analog:
Analog
Mass:
400 g
