Level - Mitutoyo Digital Precision Level, 360°, with Data Output, 950-318

Mitutoyo / Level

Level - Mitutoyo Digital Precision Level, 360°, with Data Output, 950-318

PU621503 Basket

SKU: 23470-950-318
$810.17 CAD

Level - Mitutoyo Digital Precision Level, 360°, with Data Output, 950-318 is currently out of stock.

Item #: 950-318

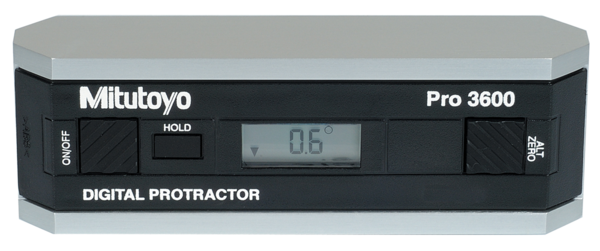

A high-resolution Mitutoyo digital protractor/level designed for making precise angle measurements in the vertical plane. The instrument can be zeroed at any angular position and directly indicates the angle between the stock and that position when in use to a resolution of 0.01 degree over a range of +/- 10 degrees (0.1 degree over the remainder of the range). When zeroed at the horizontal, readings are provided in the same manner as a spirit level, but with the advantage of a range extending all the way to the vertical.
    Range:
    360° (4 x 90°)
    Max. permissible error
    (degrees):
    0.05 (0 to 10)
    0.1 (80 to 90)
    0.2 (10 to 80)
    Repeatability
    (degrees):
    0.05
    Power supply:
    Standard battery (9 V) 6LR61
    Data output:
    Yes
    Battery life:
    Approx. 500 hours
    Sensitivity
    (degrees):
    0.01 (0 to 9.99)
    0.1 (10 to 90)
    Delivered:

    Including box
    Mass:
    0.3 kg
